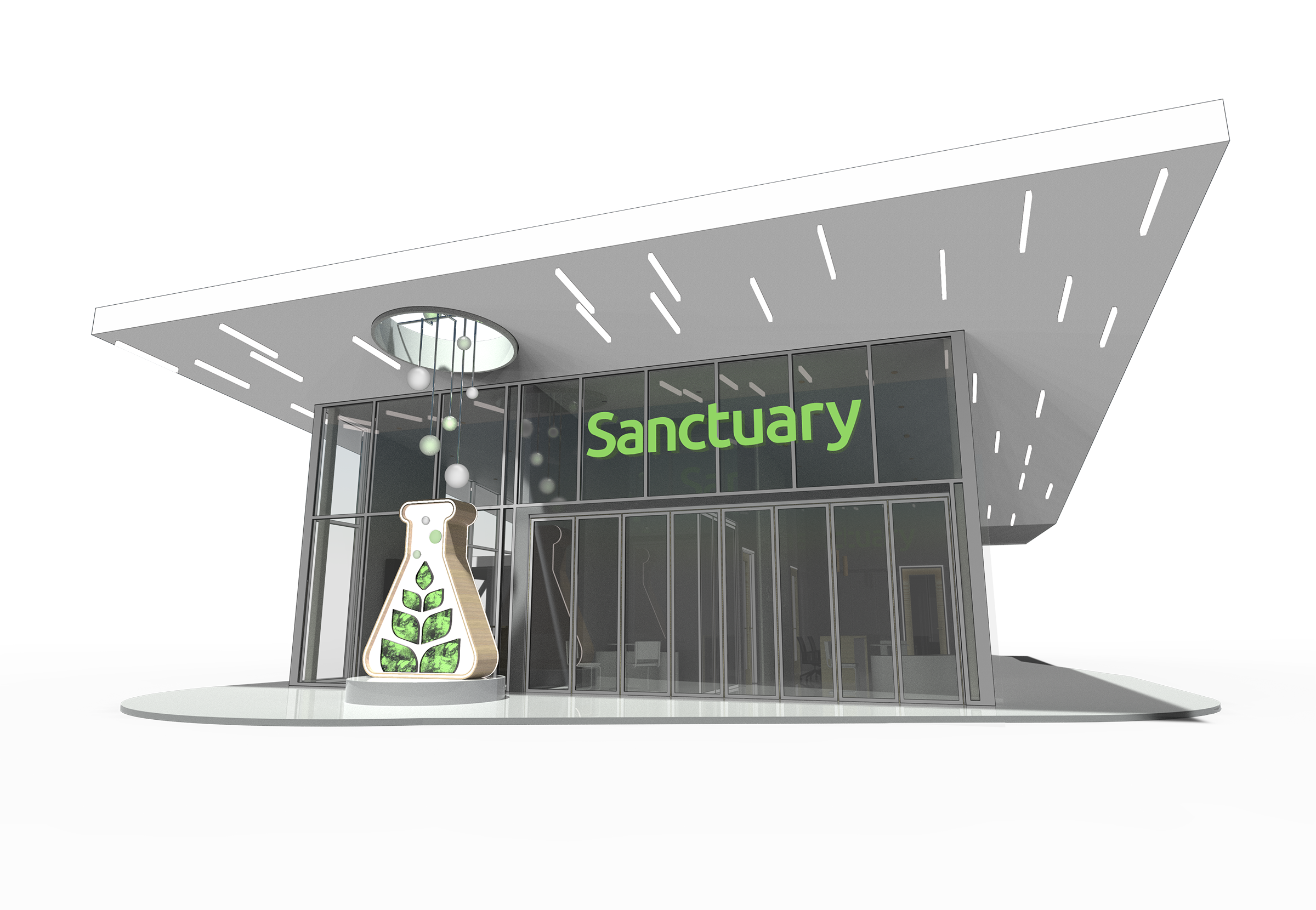

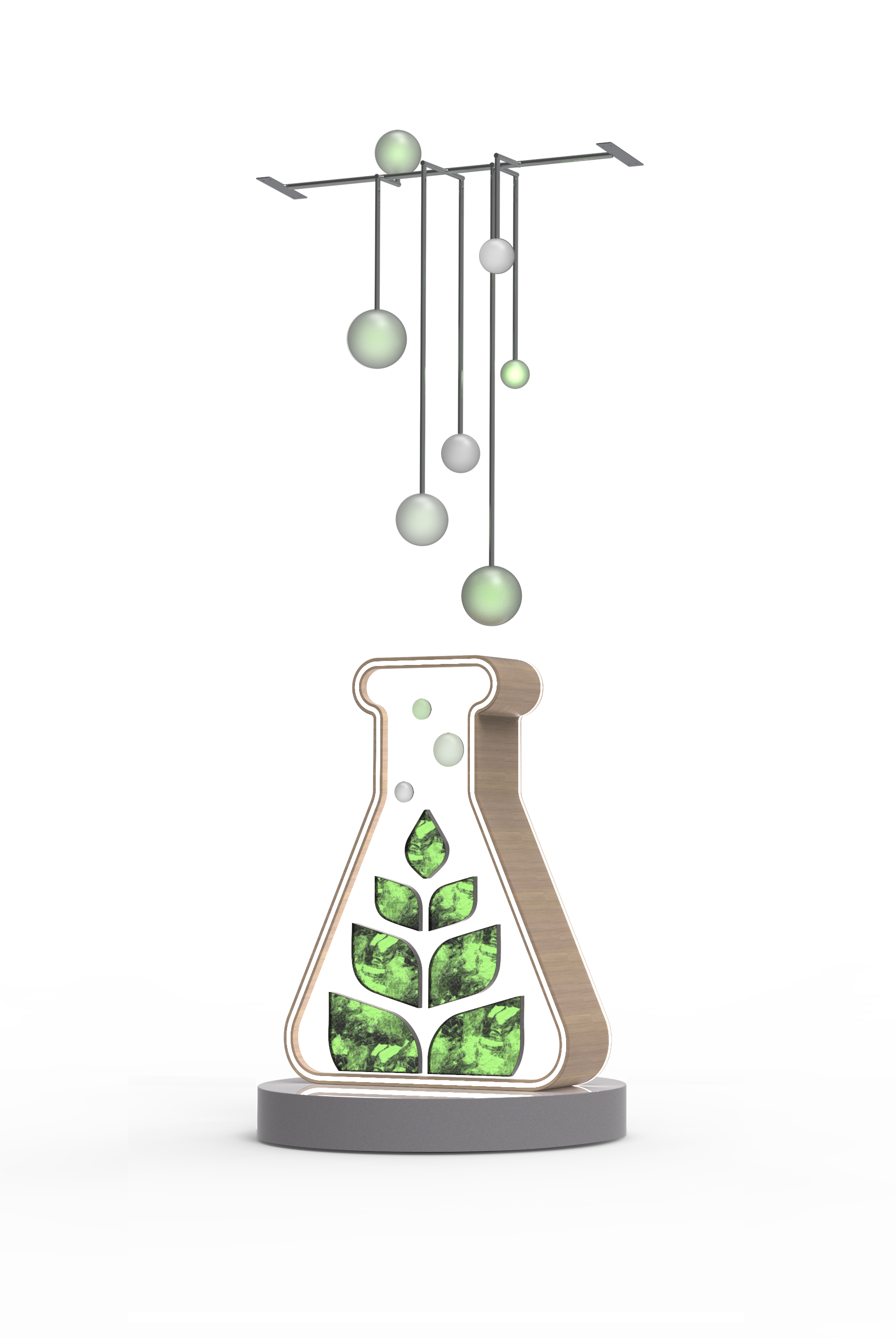

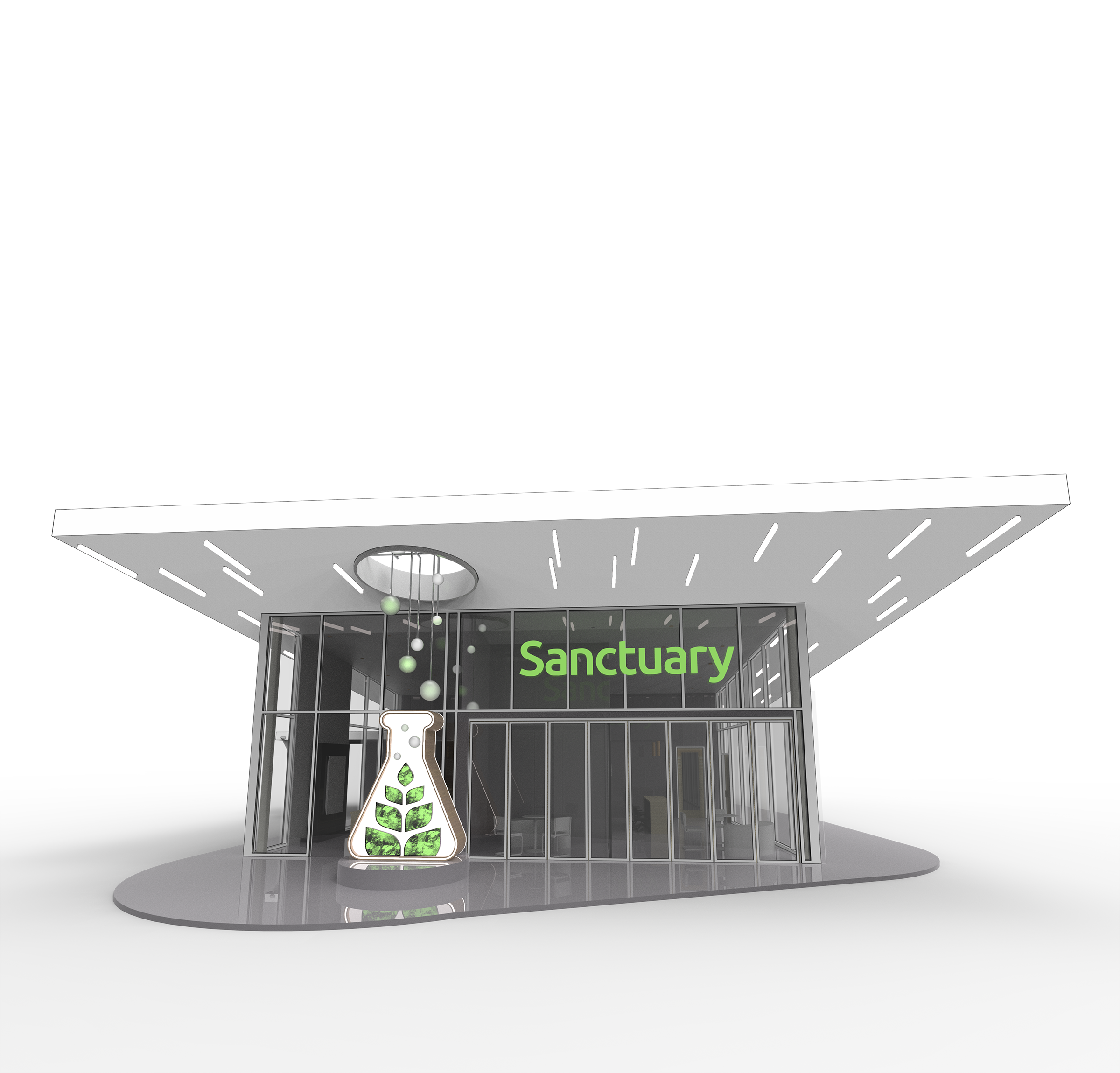

This sign was produced in 2020 in collaboration with CAC Architecture for Sanctuary Medicinal's Dream Works Orlando location. The beaker portion stands over 2.5m tall while the animated glowing bubbles overhead travel upwards another 3m. The exterior faux wood portion of the beaker is comprised of a textured exterior laminate adhered to a metal shell. The gloss white translucent front face illuminates white light while the raised leaf portions shine light through a green layer. The globe lights above the beaker structure illuminate green in a slow rhythmic sequence, implying the movement of bubbles.

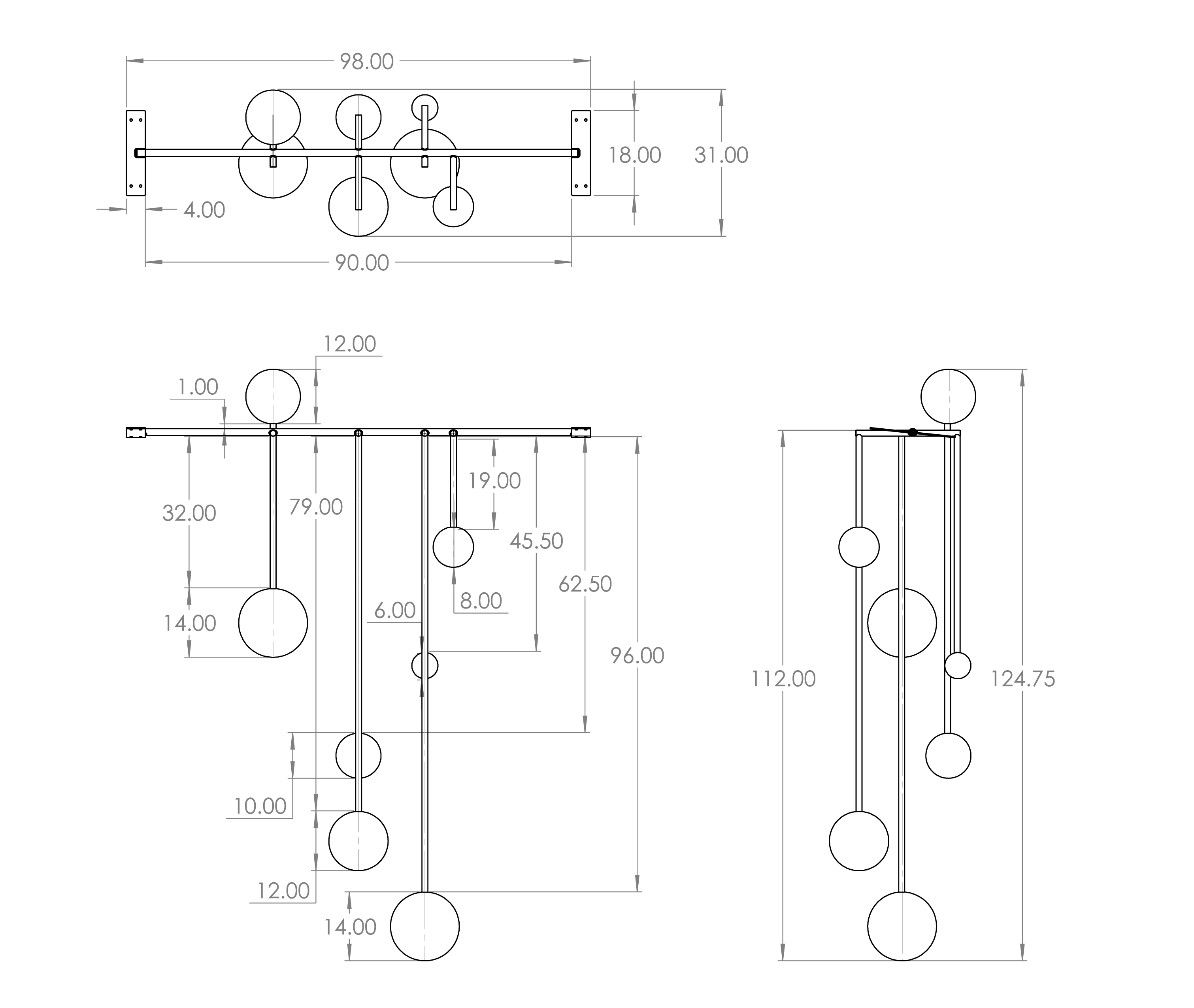

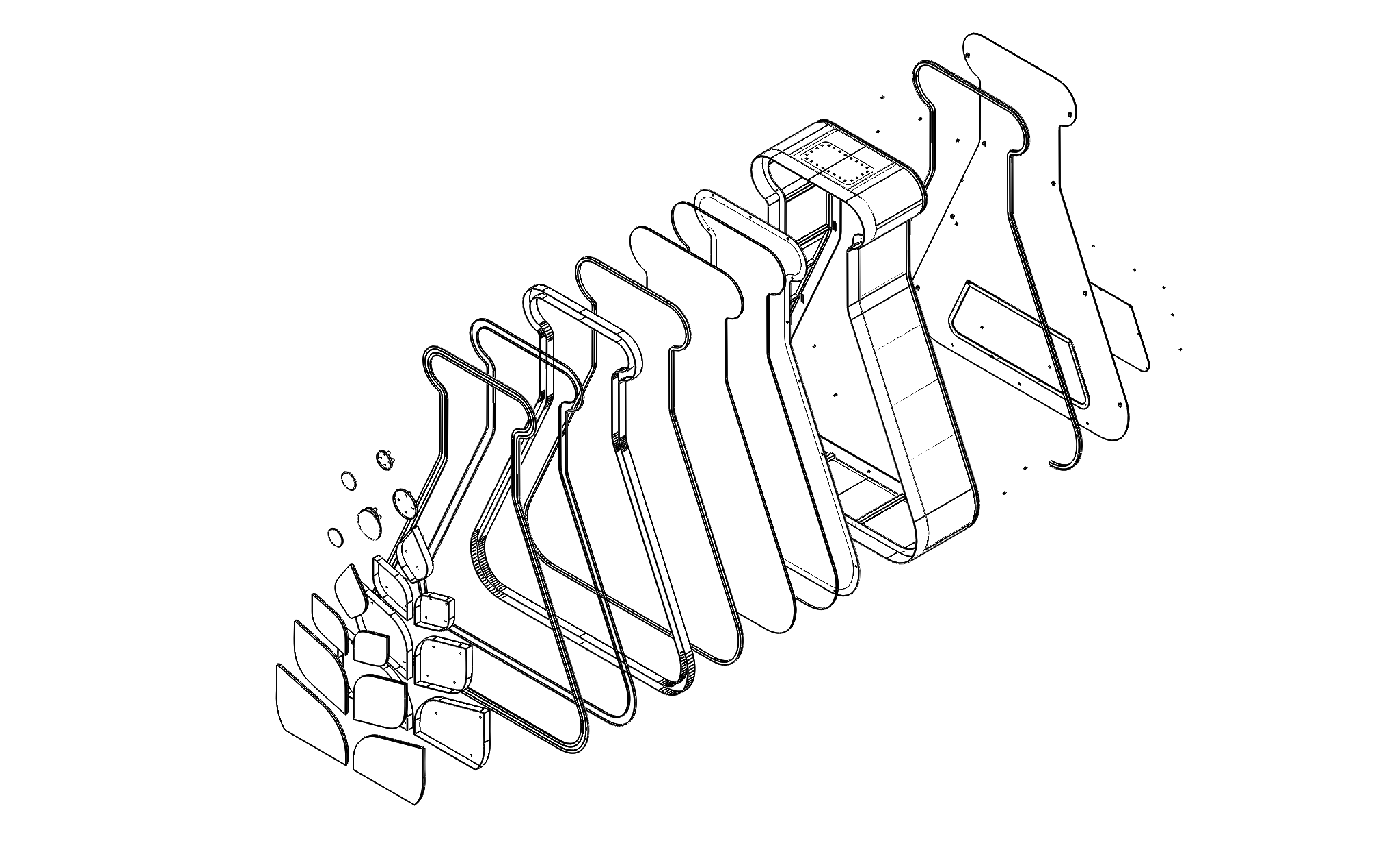

Throughout the process of designing this combination of signage elements and architecture, I had created around 10 other concepts which were reviewed by both CAC and Sanctuary Medicinals, before choosing the version shown to move forwards with. In finalizing the design, I had to create a fully spec'd set of construction drawings to hand off to the manufacturers. The final design packet included exact dimensions, build strategy, lighting specifications, assembly details, and material choices.
